fully automatic paper plate machine

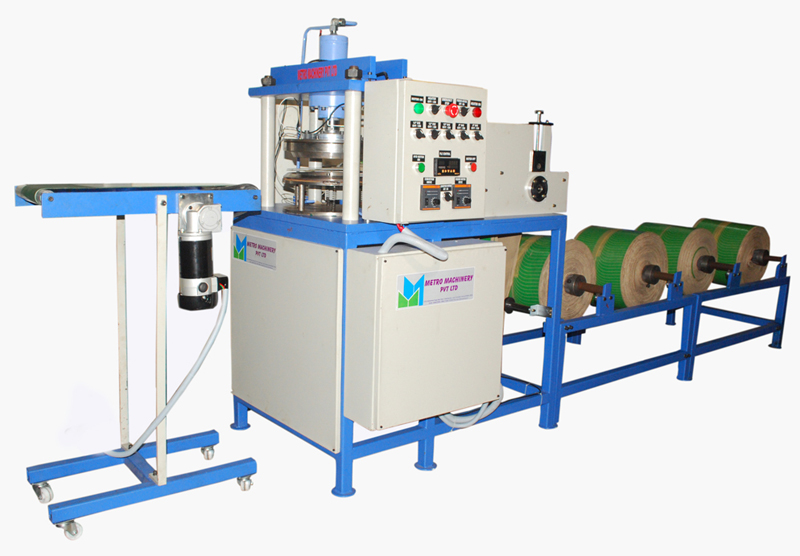

The Metro Smart Plus is designed for automatic fully paper plate machine

Characteristics:

Item Parameter
Paper Plate Standard Die Size Die 12" is standard and option additionally 4 Dies Size can be used (Ex: 10",14" and Upto 16")
Paper Plate Die Set Details 12" Female Die, Male Die with self cutter, Quality Header Assembly, Thali Die Made in Quality and Graded Material by our own tool rom (customised size also available as per request)
Ppaer Plate Forming Speed 6 sec / Cycle can be adjestable
Paper Plate Cutting Speed 10 Sec/Cycle (4 Plates)
Power Pack Oil Tank Volume 40 Ltrs
Power Pack Working Pressure 2HP / Single Phase (230V Ac)
100 Kg/cm2
Paper Plate Die Temperature 85 Deg C (can be adjestable upto 150 Deg C)
Paper Plate Machine Operating Fully Automatic, Energy Stop
Production 2000 - 2400 Plates/Hour
Power Consuption 2000 Plates in 1/2 Unit
Paper Plate Machine Capacity 5 tons
Paper plate Machine Weight 620 kg (Approx.) Excluding wooden packing
Working of the Machine Hydraulic Power Pack
Monitor No. of plate counter / Temperature controller / Sensor Contol / Moters Drive control / Machine Program Logic Control / Motor On-off Induction / Heater On-Off Induction / Die Size Selection
Dimension at running condition 3000 x 850 x 1200 - (L x W x H) in mm
Dimension at running condition 1500 x 1500 x 1400 - (L x W x H) in mm
Delivery Immediate
With in 10-15 days, If any special features order
Package Wooden pallet with wooden case
Place Note:
Additional Option
Semi Automatic Machine features also avaolable with this machine on request with extra chagres

Application Of Machine

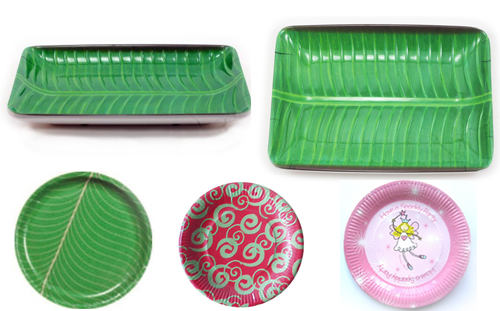

The Metro Smart Plus Produces thali paper plate of various size: 12" to 16".

Special Advantage of Metro Smart Plus Model

  • the machine designed for high-speed and long run production.
  • Extra-strength mechanical component heavy duty solid state controls, easy and simple operation.
  • Quick change of mould and adjustment
  • the price of machine is very reasonable
  • Quick and realiability service for machine
  • Variable speed control of machine according to working condition
