Paper cup machine

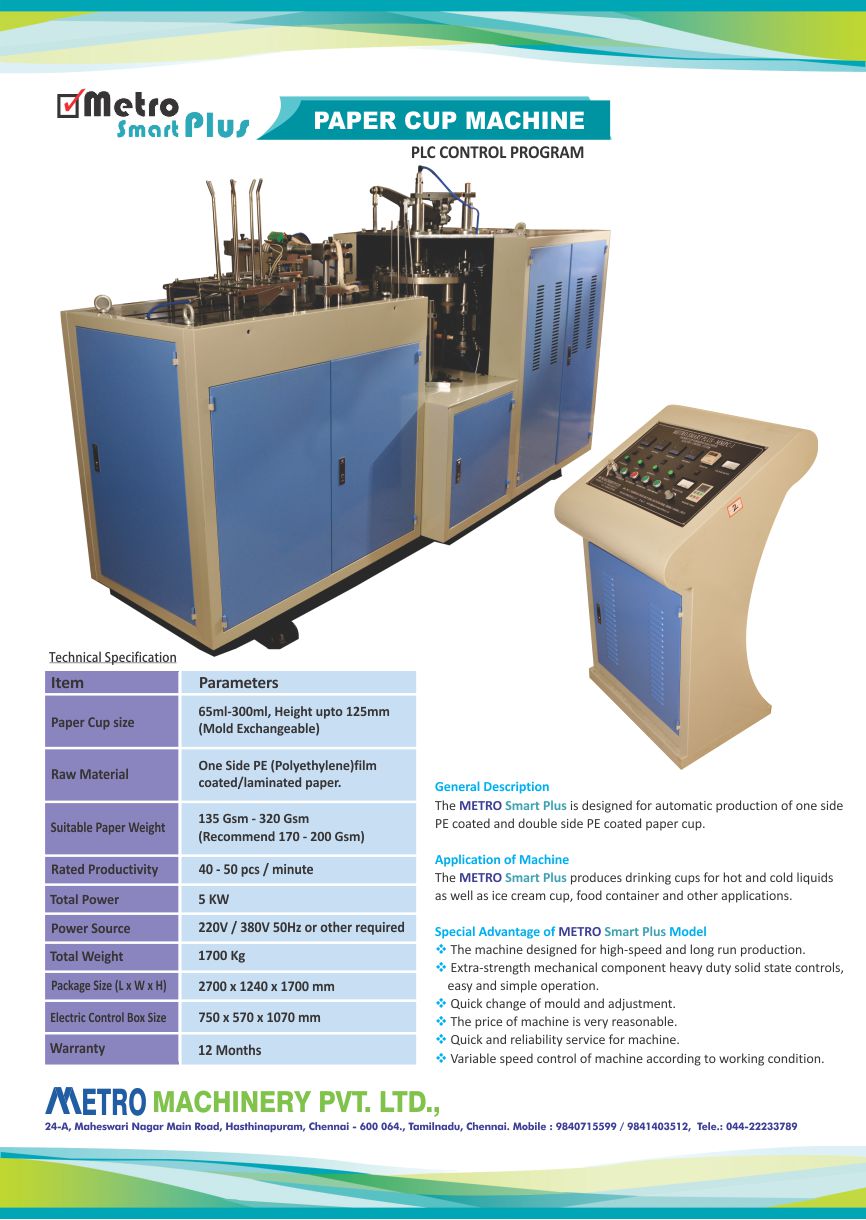

METRO SMART PLUS PAPER CUP MACHINE - single PE coated paper cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine mainly used to making one side PE coated paper cups from 65 ML to 250 ML or above 250 ML.

PAPER CUP FORMING MACHINE AND ITS DESCRIPTIONS

Characteristics:

  • Automatic control adopts optically controlled non-contact switch,
  • Micro-controlled transducer,
  • Step-less speed adjustment,
  • Paper Cup-fan-wall body sealed by heater,
  • Paper Cup bottom sealed by heater.
  • Full automatic,
  • Easy changing molds produce different sizes paper cups,
  • Easy operating by operator (one operator is enough),
  • Easy maintenance with minimum cost,
  • Cheap operating cost and low investment,
  • Amelioration: Air compressor aren't required for this type paper cup machine.
  • Technical date:

    Suitable size: 65 ML—250 ML and other special size
    Raw material: Single side PE coated or double side PE paper
    Suitable paper weight 150--400 GSM (Recommend 180--300 GSM)
    Ration Productivity: 40--55/min
    Total power : 5KW
    Net Weight: 1500kg
    Gross Weight: 2000kg
    Power: 220V 380V
    Overall dimensions : 2580L*1200W*1600H(mm)
    H.S. code 8441309000

    Standard Equipment:

  • complete electrical installation and control cabinet
  • collection table with automatic counting system
  • infinitely variable drive
  • gears running in oil bath
  • heat sealing device for PE coated paper
  • servo-driven bottom-web feed with infinitely variable setting
  • bottom punching and drawing device
  • reel stand for bottom materials
  • compressor for air supply to heaters
  • complete safety guard enclosure with doors and interlock switches
  • including one set of forming tool and spare parts for each machine
  • Material

    The frame of paper cup machine (single PE coated paper) is made of metal and the body is made of steel.

    Packing

    All the machines are delivered in a wooden case.

    Maintenance

  • Maintenance on the paper cup machine (single PE coated paper) should only be carried out under supervision. Strict attention should be given while the machine is in operation and the shield is removed.
  • Clean materials and accessory materials.
  • Attention should be paid to the sanitation and cleanliness of the machine. A fixed scheduled should be maintained to clear and wipe down the machine. Keep greasy dirt away from the paper, die and roller. The paper cup machine (single PE coated paper) should be located away from paper scraps, dust accumulation or plastic rolling.
  • Glycerol is used to lubricate the entire machine. A fixed schedule should be maintained to clean lubricated places and lubricate them with glycerol.
  • After Sale Service

  • A guide book is included to assist with the installation and machine adjustment process and help solve any problems that may be encountered.
  • The paper cup machine (single PE coated paper) is adjusted one week prior to delivery to make sure our machine is in perfect condition.
  • Technicians are available to guide the installation and adjust the machine at the buyer's factory.
  • Free training is available and ongoing for the buyer until he fully understands the operation of our paper cup machine (single PE coated paper).
  • We provides the consumable spare parts at no cost for one year.
  • Warranty

  • Our paper cup machine (single PE coated paper) a one year warranty from the shipment date.
  • The warranty is not applicable to parts requiring normal replacement.
  • We are not responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.
